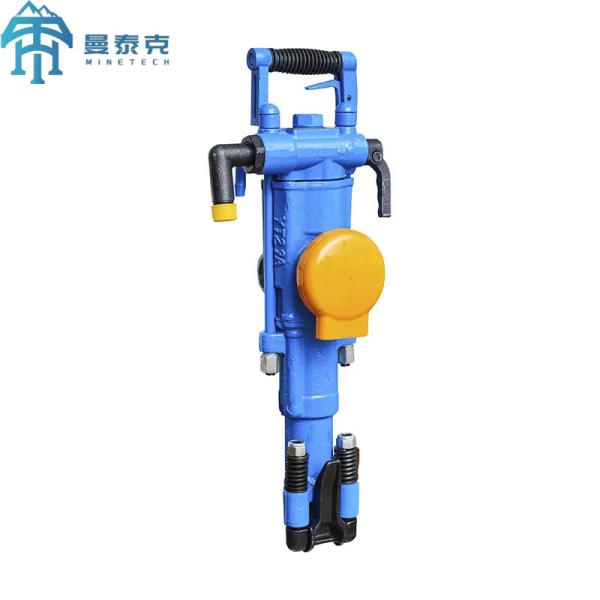

YT27 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling
Machine Jack Hammer with air-leg
Product descriptions:
The rock drill is used for rock drilling, blasting holes and other
drilling works in quarries,tunnels small coal mines and other
construction works.
Product specification:
| PRODUCT SPECIFICATION |
| The parameter name | Unit | The parameter value |
| Weight | kg | ≈28 |
| Length | mm | 661 |
| The cylinder diameter | mm | 82 |
| Piston stroke | mm | 60 |
| Gas consumption | L/s | ≤65 |
| Drilling and frequency | Hz | ≥37 |
| Impact energy | J | ≥70 |
| borehole speed | mm/min | ≥475 |
| The borehole diameter | mm | Φ34-42 |
| Perforating depth | m | 5 |
| Shank | mm | 22×108±1 |
